The Terrain Creator is used to generate large landscapes. Often, the terrain generated by the Terrain Creator is land that players can walk on. However, the Terrain Creator can also be used to generate land that cannot be walked on and exists solely as a background for the game world.

Creating Terrain

Click on the mountain iconterrain creator icon at the top of the Core Editor to open the TERRAIN CREATOR drop down menu.

Click on Terrain Icon

The TERRAIN CREATOR drop down menu contains two options, Generate New Terrain and Import From Heightmap. The Generate New Terrain option will open the GENERATE NEW TERRAIN window which is used to create new terrain by modifying pre-existing terrain types. The Import From Heightmap option will open the IMPORT TERRAIN HEIGHTMAP window.

Generate Terrain

The Terrain Generator

The GENERATE NEW TERRAIN window contains settings that are used to manipulate how the terrain will be generated.

The left side of the GENERATE NEW TERRAIN window contains list of different terrain types. The center of the GENERATE NEW TERRAIN window contains two sections, General, and Parameters.

Terrain Generator

Terrain Settings

The General section contains settings that will apply to all types of terrain. The Voxel Size setting determines how large the voxels of the terrain will be. A voxel is like a 3D pixel. The smaller the voxels are, the more detail the terrain can have. The Terrain Size setting determines how many voxels the terrain will have. The higher the voxel count, the larger the terrain can be. The downside of increasing the number of voxels is that the terrain use up more of the limited terrain memory space. Creators are limited between 50 MB and 100 MB of terrain memory space depending on the maximum number of players for the game.

The Parameters section contains settings that will vary depending on the terrain type selected. For example, the Cube World is the only terrain type with the Edge Length setting.

Terrain Types

Clicking on one of the terrain types from the list on the left side of the GENERATE NEW TERRAIN window will select that terrain type. Below are three sample images of what the different terrain types look like.

Ravines Rolling Hills Rocky Meadow
Ravines Rolling Hills Rocky Meadows

The Generate button will create a new terrain object using the settings in the GENERATE NEW TERRAIN window. The new terrain object will appear in Hierarchy window and may also be visible in the Main Viewport.

Terrain In Hierarchy

The Terrain object in the Hierarchy window will probably appear red because the Terrain object is missing a material. This will not stop the game from running. Assignment of materials to terrain will be addressed later in this reference guide.

Tip

Double clicking on a terrain object in Hierarchy window will bring that terrain object into view in the Main Viewport window.

Heightmaps

Heightmaps allows creators to generate terrain objects from .png images. The brightness of each pixel in the .png image controls how tall the point of terrain associated with that pixel will be.

Formatting Heightmaps

Heightmap images need to square gray-scaled .png images. The Terrain Generator will only accept heightmap images of the following sizes:

  • 128 x 128
  • 256 x 256
  • 512 x 512
  • 1024 x 1024

Tip

There are multiple websites that can be used to convert .png images to gray-scale images."

Importing Heightmaps

To create a terrain object from a heightmap, first click on the mountain icon icon. Clicking on the Import From Heightmap in the TERRAIN CREATOR window will open the IMPORT TERRAIN HEIGHTMAP window.

Click On Import From Heightmap Button

The settings in the IMPORT TERRAIN HEIGHTMAP window determine how much influence the heightmap will have in the generation of terrain.

!Heightmap Window

Below is an example of a heightmap .png file and the terrain generated from that heightmap .png file. This heightmap image was generously provided by the Core creator docbdesign.

Source Image Terrain Output Heightmap Source Image (left) vs. Terrain Generated from Heightmap (right)

The Voxel Size setting in the IMPORT TERRAIN HEIGHTMAP window determines how large the voxels of the terrain will be. Smaller voxel sizes will shrink the terrain but increase the amount of detail.

Voxel Settings

The Height Multiplier setting in the IMPORT TERRAIN HEIGHTMAP window changes how much influence the brightness of a pixel has on the height of the generated terrain.

The Height Offset setting in the IMPORT TERRAIN HEIGHTMAP window determines what the default height of the generated terrain will be.

Height Settings

Clicking on the load file icon import file icon next to the Heightmap field will open a File Explorer window open in which any .png files can be selected from your computer. The Import button will generate a new terrain object using the Heightmap, Weightmap, Voxel Size, Height Multiplier, and Height Offset settings from the IMPORT TERRAIN HEIGHTMAP window. The Weightmap setting will be explained later in this reference.

Import Heightmap File

Click on Import Button

Sculpting

The Sculpt tool is used to manually change the shape of terrain objects. Clicking on a terrain object in the Hierarchy window will display the properties of that terrain object in the Properties window. The Properties window for the terrain object contains a list of five tools modify terrain: Sculpt, Pain, Foliage, and Optimize.

Terrain Properties Window

Clicking on the Sculpt tab will display the settings used to manually sculpt terrain and enable sculpting of terrain.

Click on Terrain Sculpt

If the Sculpt tab has been selected, clicking and hold the Left Button of the mouse will extrude towards the camera of the Main Viewport.

Additive Sculpting

Click on the Pull Terrain Iconadditive sculpting icon to enable Additive Sculpting. Additive sculpting adds to the terrain by creating new terrain under the brush. The Additive Sculpting exists on both the Surface and Shape tools.

Additive Mode

Destructive Sculpting

Clicking on the Push Terrain Icondestructive sculpting icon will enable Destructive Sculpting. Destructive sculpting removes terrain under the brush. The Destructive Sculpting setting exists on both the Surface and Shape tools.

Destructive Mode

Brush Tools

The Sculpt tab contains six tools used to sculpt terrain: Surface, Shape, Smooth, Trim, Flatten, and Level. This reference will cover how the Surface, Shape, and Smooth function. Clicking on the name of the current tool in the Tool will open a drop down menu listing all six different sculpting tools. A sculpting tool can be selected from this drop down menu by clicking on the name of the desired tool.

Brush Tool Drop Down Menu

Surface Tool

The Surface tool protrudes or indents terrain over an area on the surface of the terrain under the brush.

Shape Tool

The Shape tool transforms the brush into a 3D mesh. The default mesh is the a sphere. Double clicking on the current shape will open the STATIC MESH PICKER window.

Double Click On Shape

The STATIC MESH PICKER window contains a list of the 3D meshes that can be use to replace the current shape. Select one of the models, and then press the Done button.

Shape Tool Alignment

The Alignment property in the Brush section of the Shape tool determines where the brush can paint. There are four different alignment settings: Surface, View, Ground, and Up.

Clicking on the button with the current alignment will open a dropdown menu of brush alignment options. Click one of the items in the dropdown menu to change the brush alignment.

Alignment Drop Down Menu

Surface Alignment

The Surface alignment option attaches the brush to the surface of the terrain.

Other Alignments

The View, Ground, and Up alignment options work differently from the Surface alignment because they allow enable the brush to create terrain in the air by painting on an invisible drawing plane.

View Alignment Ground Alignment Up Alignment
View Alignment Ground Alignment Up Alignment
The drawing plane is aligned with the camera The drawing plane is parallel to the ground The drawing plane always points towards the camera and is upright

The green dashed lines in the diagrams above represent the Distance to Camera property. The Distance to Camera property determines how far the drawing plane should be from the camera. The Air Mode property must be enabled for the Distance to Camera property to be visible.

Below is a side by side comparison between Air Mode being disabled and Air Mode being enabled. When Air Mode is disabled, the brush sticks to the surface of the terrain. When Air Mode is enabled, the brush ignores the terrain and sticks to the draw plane.

air mode disabled air mode enabled Air Mode Disabled (left) vs Air Mode Enabled (right)

Smooth Tool

The Smooth tool will smooth terrain with sharp edges.

Paint Tool

The Paint tool is used to manually paint materials onto the terrain. Up to four different materials can be painted on the terrain.

Generating Materials

The Paint tab in the Properties window of a terrain object contains settings used for switching between different painting materials and for changing the size and strength of the painting brush.

Select Paint Tab

In the Paint tab the following message may be displayed: The terrain material is not paintable!

This message indicates that the currently selected terrain object has no materials associated with it. Clicking on the Create new terrain material will open a Material Editor window used to associate materials with the terrain object.

Generate Materials

Material Editor

In the Material Editor there are four sections that correspond to the four different materials available when painting on terrain:

  • Material1
  • Material2
  • Material3
  • Material4

Double clicking on one of the checkered sphere image will open MATERIAL PICKER window. The MATERIAL PICKER window contains a list of different materials that can be applied to the current material slot.

Double Click on Material Icon

Select a material from the MATERIAL PICKER and the click on the Done button to update the current material slot with selected material from the MATERIAL PICKER window.

The Material Base property determines what material will be displayed on the top of the terrain. The Material Side property determines what material will be displayed on the side of the terrain.

Side Material Example

Switching Materials

Clicking on the Icon Closeclose window icon at the top left of the Material Editor window will save all changes to the terrain materials and close the Material Editor window.

Close Material Editor

Clicking on one of the four images next to the Materials in the Palette section will select that material for painting.

Select Material

The Edit Materials button will open the Material Editor window for the terrain materials so that changes can be made.

Pressing and hold the Left Button of the mouse in the Main Viewport will fill in the area of terrain under the mouse over a period time.

Many of the available materials have depth aspect to them. For example in the video above, the dirt material will sometimes display below the stone material. This is due to the fact that the materials built into Core have a depth property associated with each pixel. In the image below, the left side Food Corn 01 material is at 100% strength on the left and completely covers the Bricks Worn Stone 01 material. On the right side, the Food Corn 01 material is at 50% strength on only partially covers the Bricks Worn Stone 01 material depending on which spots of the Food Corn 01 material are highest.

Depth Example 100% Strength Food Corn 01 material (left) vs 50% strength Food Corn 01 material (right)

The strength of materials is even more so visible by using the Debug Mode in the terrain editor. In the Paint tab there is setting named Show Debug Materials. Clicking on the box next to Show Debug Materials will enable Debug Mode for the terrain. Debug Mode for terrain will give each material a specific color: red, green, blue, or black.

Enable Debug Mode

Below is the side by side comparison of the Food Corn 01 at 100% and the Food Corn 01 material at 50%. Since the Bricks Worn Stone 01 material is the first terrain material, the Bricks Worn Stone 01 material appears as the color red. Since the Food Corn 01 material is the_second_terrain material, the Food Corn 01 material appears as the color green. The reasoning for these colorings will be further covered in the Weightmaps section. On the right side, the terrain is 50% Food Corn 01 material and 50% Bricks Worn Stone 01 causing it to appear a mix of green and red which is a yellow color.

Terrain Debug Mode

Foliage

In the Core Terrain System, foliage are simple objects that are generated at random positions on a specific terrain material. In most cases, foliage will take the form of trees, boulders, and bushes. The foliage system will automatically generate and place the foliage on the terrain. Each foliage object is tied to a specific terrain material. Foliage objects will only spawn on the terrain material they are associated with.

The Foliage tab in the Properties window of the selected terrain object is used to configure the settings for generating foliage on a terrain object.

Select Terrain From Hierarchy

Select Foliage Tab

Adding Foliage

Clicking on the Add Foliage button will open the STATIC MESH PICKER window. The STATIC MESH PICKER window contains a list of meshes that can be used as foliage. Select a mesh from this window and then click on the Done button.

Click on add Foliage Button

Note

When adding foliage only use assets from the STATIC MESH PICKER window can be used. Custom templates cannot be used as foliage.

The object selected from the STATIC MESH PICKER window will now be randomly spread throughout the terrain as foliage. By default, the foliage added will be associated with the first terrain material. This means that the foliage that was generated will only appear on terrain areas covered by the material in the first material slot of the terrain.

Arch on Terrain

Removing Foliage

To remove foliage, right click on the foliage object. Then select the Remove option from the drop down list. Alternatively, painting over a foliage instance with a different terrain material will remove that foliage instance. This alternative method will only remove the foliage instance if the foliage instance is not associated with the newly painted terrain material.

Foliage Properties

Clicking on a foliage object in the Foliage window will display the spawn settings for that foliage object.

Material Channel

The Material Channel property determines which terrain material the selected foliage object will spawn on top of. Click one of the four terrain materials to change which terrain material the foliage object should spawn on top of.

Spawn Settings

The Distance Between Instances property controls the density of placement for one type of foliage. The higher the Distance Between Instances, the more space there will be between instances of that foliage.

Distance between of 2 meters Distance between of 7 meters Distance Between Instances of 2 meters (left) vs. Distance Between Instances of 7 meters (right)

The Surface Alignment property determines how the foliage will be oriented when generated. There are three different alignment options: Align to terrain Up, Align to surface, and Random Align. The Align to terrain Up option will align the foliage with the z-axis of the terrain. The Align to surface option will align the foliage perpendicularly to the slope of the specific point of terrain that the foliage instance is on. The Random Align will randomly assign the Align to surface or Align to terrain up for each foliage instance.

Up Alignment Surface Alignment Up Alignment (left) vs. Surface Alignment (right)

The Ground Slope Angle controls the type of slope the foliage is allowed to spawn on. Ground Slope Angle can be used to prevent foliage like trees from spawning on the side of a cliffs. The Group Slope Angle property has two settings. The first setting is the minimum slope angle. The second setting is the maximum slope angle. The table below demonstrates how manipulating the first and second settings for the Ground Slop Angle property changes the locations that foliage spawns at.

0° - 30° 30° - 90° 0° - 90° 90° - 180°
0 through 30 degrees 30 through 90 degrees 0 through 90 degrees 90 through 180 degrees

The Local Z-Offset property moves the foliage upwards or downwards based on the local z-axis of the foliage.

Local Z Offset Example

Local Z Offset Property

The Global Z-Offset property moves the foliage upwards or downwards based on the global z-axis of the game.

Global Z Offset

Global Z Offset

The Random Yaw property determines if the foliage objects should be randomly rotated around their local z-axis.

Random Yaw Property

The Scaling property allows for fine control over the minimum and maximum scales of each axis (X, Y, and Z) of every generated foliage object. There are three different scaling modes to choose from: Free, Uniform, and XY Lock. Each scaling mode enables the manipulation of the minimum and maximum scales for different combinations of the X, Y, and Z axes.

Scaling Type Scaling Settings
Free Free Scaling
Uniform Uniform Scaling
XY Lock Lock XY Scaling

The Height property determines at what altitude the foliage can spawn. This property is extremely useful when creating terrain with bodies of water. This property could be used to prevent foliage like trees and bushes from spawning below the water level. There are two settings for this property. The first setting is the minimum height. The second setting is the maximum height.

Height Property

Foliage Materials

Foliage objects have one or more material slots that can be used to change the materials applied to the foliage objects. Clicking on a foliage object in the Foliage tab will display the settings for that foliage object. The Materials section of the foliage settings contains the materials applied to the foliage. Double clicking on the material icon of a material slot belonging to the selected foliage object will open the MATERIAL PICKER window. The MATERIAL PICKER window contains a list of materials that can be applied to the foliage/

Material Properties

Click on a material from the MATERIAL PICKER window, then click on the Done button to apply that material to the selected material slot of the foliage object. Changes to the material slot will be reflected in all instances of that foliage object.

Render Settings

The Spawn Distance setting controls the maximum distance that foliage can be rendered at. Below is a comparison between a Spawn Distance of 96 meters and 128 meters.

Spawn Distance 96 Spawn Distance 128 Spawn Distance of 96 meters (left) vs. Spawn Distance of 128 meters (right)

The Cull Distance property determines how Core will remove the foliage from view. This is done to decrease the time required to render all of the foliage on terrain. There are two settings for this property. The first setting determines the distance from the camera at which the foliage begins to disappear from view. The second setting determines the distance from the camera at which foliage will stop being drawn.

Cull Distance Property

The Cast Shadows property determines if the foliage should cast shadows. Enabling this property will increase the time required to render all of the foliage. A comparison between disabling Cast Shadows and enabling Cast Shadows can be seen below.

Cast Shadows Property

Shadows Disabled Shadows Enabled Shadows Disabled (left) vs. Shadows Enabled (right)

Optimize Tool

When designing terrain it is important to keep in mind the memory limit for terrain. As more terrain features and foliage are added to terrain, the terrain will take up more memory space. There is a bar at the top of Core Editor that indicates the remaining terrain memory space available for the current game.

Terrain Memory

If this bar is ever red, then the terrain will need to optimized to consume less memory space.

Terrain Memory Warning

The Optimize tool is used to reduce the memory space used by terrain.

Optimize Tab

There are two options to reduce the memory used by terrain: Optimize and Simplify Voxels. The Optimize option will attempt to reduce the memory used by terrain without reducing the detail of the terrain. Clicking on the Optimize button will automatically optimize the terrain.

Optimize

The Simplify Voxels option is more effective than the Optimize option however, the Simplify Voxels option can reduce the detail of terrain. Clicking on the Simplify Voxels button will automatically simplify the terrain. Depending on the complexity of the terrain, the simplification of terrain voxels may take multiple minutes.

Simplify Voxels

Weightmaps

Weightmaps are similar to heightmaps. Weightmaps store material data for terrain in the form of a .png file. To understand how this works it is important to know how data is stored in a .png file. The pixels in most .png files are made up of four color channels: red, green, blue, and alpha. The strength of these color channels determine the color of each pixel in a .png image. For example, a high red channel and blue channel value will create a magenta colored pixel. The alpha channel is used to determine the transparency of a specific pixel in a .png image. The image below demonstrates how differing the strength of the red, green, and blue channels can create the orange color in the Core logo.

Png Example

Weightmaps use these four color channels to automatically paint the terrain. Weightmaps tie each of the four color channels of the .png weightmap file to the four materials associated with the selected terrain.

  • The red channel is tied to the first material
  • The green channel is tied to the second material
  • The blue channel is tied to the third material
  • The alpha channel is tied to the fourth material
Weightmap Demo
Weightmap

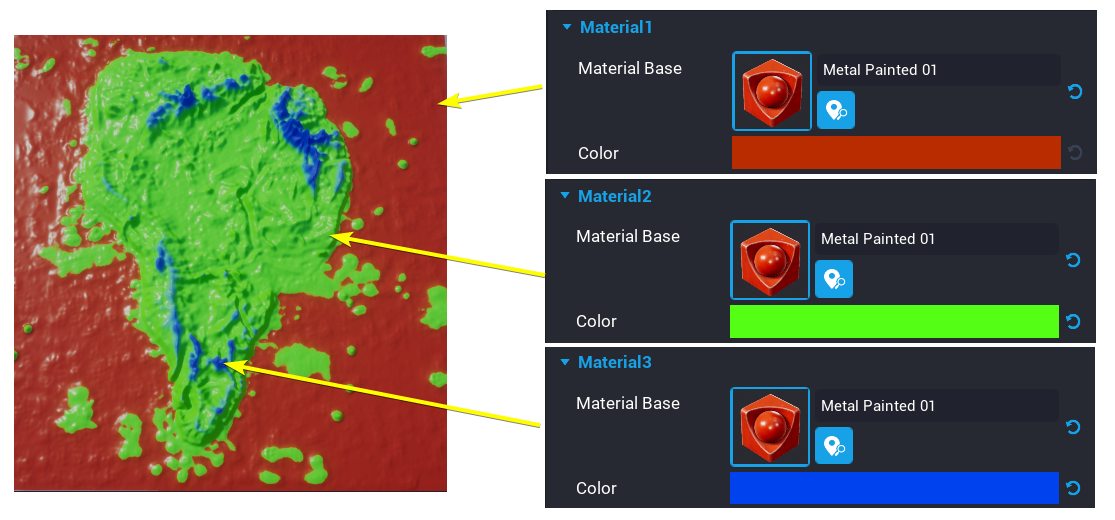

Materials Applied to the terrain (left) vs. Source Weightmap (right)

Note

If the weightmap .png file uses the alpha channel, then the Import Alpha Channel property in the IMPORT TERRAIN HEIGHTMAP window must be enabled before generating terrain.

Import Alpha Channel

Clicking on the load file iconimport file icon next to the Weightmap field will open a File Explorer window in which you can select a .png file from your computer to use as a weightmap.

Import Weightmap File

Click on Import Button

Weightmap images need to square .png images. The Terrain Generator will only accept weightmap images of the following sizes:

  • 128 x 128
  • 256 x 256
  • 512 x 512
  • 1024 x 1024
